What Is a Modular Building System?

A modular building system is a complete prefabricated construction approach made from repeatable and compatible building elements. These elements may include galvanized steel frames, sandwich panels, roof trusses, purlins, floor systems, insulation materials, doors, windows, electrical installations, sanitary systems, and interior or exterior finishes.

The main purpose of this system is to create buildings that are fast to manufacture, quick to install, structurally reliable, and suitable for different project types.

This flexibility makes modular systems suitable for residential, commercial, industrial, educational, healthcare, and remote workforce projects.

Main Components of a Modular Building System

A professional modular building system is not just a group of panels. It is a complete technical system where every component has a clear structural, thermal, or finishing function.

The main components include:

• Galvanized steel structure

• Roof trusses

• Omega purlin profiles

• Galvanized trapezoidal roof sheet

• Rain gutter and downspout

• PVC eaves and fascia cladding

• sandwich panel

• Cement board

• EPS insulation

• Glass wool blanket insulation

• Galvanized corner profiles

• Galvanized steel H profiles

• PVC window frames

• Cement board floor sheathing

• Gypsum board or cement board ceiling sheathing

• Floor tile

• Tile adhesive mortar

• Screed

• Concrete foundation

Together, these components create a durable, insulated, and practical prefabricated building system suitable for temporary, semi-permanent, and permanent applications.

Exploded View of the Modular Building System

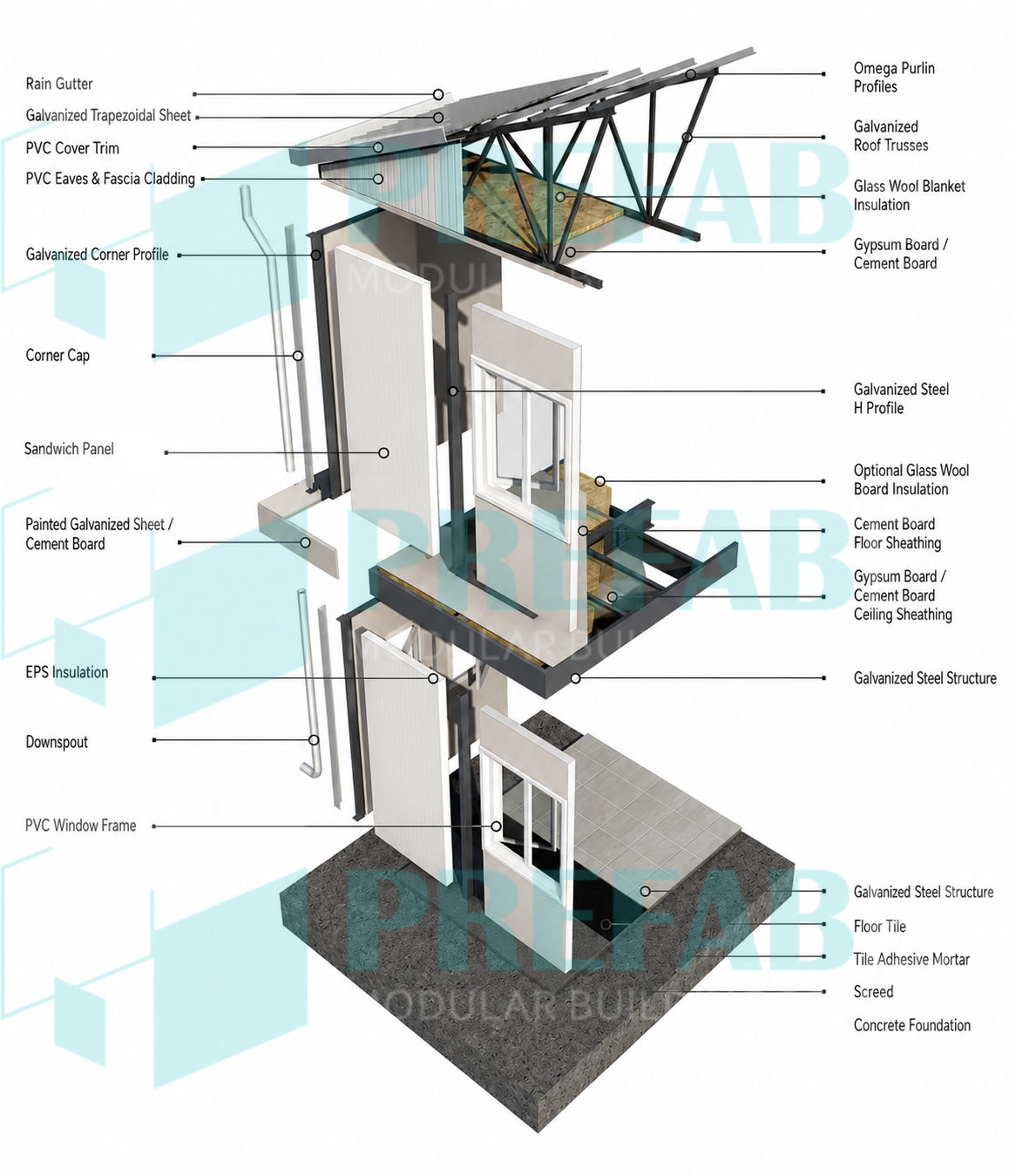

Modular building system exploded view showing galvanized steel structure, roof trusses, sandwich panels, EPS insulation, cement board, PVC window frame, floor tile, screed, and concrete foundation.

Exploded view of a modular building system showing the main roof, wall, floor, insulation, steel structure, and foundation components.

The exploded technical view helps explain how the building system is assembled layer by layer. It shows the relationship between the roof structure, wall panels, steel framing, insulation, floor layers, and foundation.

The main labeled components include:

• Rain Gutter
• Galvanized Trapezoidal Sheet
• PVC Cover Trim
• PVC Eaves & Fascia Cladding
• Galvanized Corner Profile
• Corner Cap
• Sandwich Panel
• Painted Galvanized Sheet / Cement Board
• EPS InsulationDownspout
• PVC Window Frame
• Omega Purlin Profiles
• Galvanized Roof Trusses
• Glass Wool Blanket Insulation
• Gypsum Board / Cement Board
• Galvanized Steel H Profile
• Optional Glass Wool Board Insulation
• Cement Board Floor Sheathing
• Gypsum Board / Cement Board Ceiling Sheathing
• Galvanized Steel Structure
• Floor Tile
• Tile Adhesive Mortar
• Screed
• Concrete Foundation

This type of technical illustration is useful for architects, contractors, developers, and project owners who want to understand how a modular building is constructed from its main components.

Galvanized Steel Structure

The main load-bearing system of a modular building is usually made from galvanized steel profiles. These profiles form the structural skeleton of the building, including columns, beams, wall frames, roof trusses, purlins, and floor structures.

Galvanized steel is used because it provides strong structural performance, corrosion resistance, accurate factory production, and easy bolted assembly.

In a modular building system, steel components are designed for fast installation and reliable connection. Bolts, nuts, and specially shaped profiles allow the structure to be assembled efficiently on site. In many cases, the building can also be dismantled, transported, and reassembled when required.

This makes galvanized steel one of the most important materials in modern prefabricated and modular construction.

Wall Panel System

The wall panel system is one of the most important parts of a modular building. It affects insulation, durability, indoor comfort, exterior appearance, and installation speed.

A typical modular wall panel can include:

• Exterior cement board

• EPS insulation core

• Interior cement board

• Galvanized steel U and H connection profiles

• Painted exterior and interior surfaces

The exterior and interior boards create a strong surface, while the insulation core helps improve thermal performance. Cement board is commonly used because it offers durability, fire resistance, and better performance than basic lightweight wall materials.

Wall panels can be manufactured as full wall panels, window panels, door panels, transom panels, corner panels, and interior partition panels. This panelized approach allows modular buildings to be assembled quickly and accurately.

For projects such as modular homes, offices, schools, and workforce accommodation, this system provides a practical balance between speed, strength, and comfort.

EPS Insulation

EPS insulation, also known as Expanded Polystyrene Foam, is commonly used inside modular wall panels. It helps reduce heat transfer and improve indoor comfort while keeping the wall panels lightweight.

EPS insulation supports:

• Better thermal performance

• Lightweight construction

• Faster panel production

• Reduced heat loss

• Improved indoor comfort

• Consistent insulation quality

In modular building systems, EPS insulation is usually placed between cement board layers to create an insulated sandwich panel. This system is practical for residential, commercial, and site-use buildings.

Cement Board Cladding

Cement board is a key material in professional prefabricated construction. It can be used for exterior wall surfaces, interior wall surfaces, floors, ceilings, and wet-area applications.

Cement board provides:

• Strong surface durability

• Better fire performance

• Impact resistance

• Smooth painting surface

• Moisture resistance compared with standard gypsum board

• Long service life in demanding environments

In modular building systems, cement board may be used as exterior wall sheathing, interior wall surface, floor sheathing, ceiling sheathing, and wet-area wall or ceiling board.

Using cement board helps create a stronger and more reliable modular building envelope.

Roof System

The roof system in modular construction is engineered as a complete assembly. It usually includes galvanized roof trusses, omega purlin profiles, trapezoidal steel sheets, insulation, ceiling boards, gutters, and downspouts.

A typical modular roof system can include:

• Galvanized roof trusses

• Omega purlin profiles

• Galvanized trapezoidal sheet roofing

• Glass wool blanket insulation

• Gypsum board or cement board ceiling

• PVC eaves and fascia cladding

• Rain gutter

• Downspout

The roof trusses carry the roof loads, while omega purlin profiles support the roof covering. The galvanized trapezoidal sheet provides a durable external roofing layer. Below the roof, glass wool insulation helps improve thermal and acoustic performance.

PVC gutters and downspouts manage rainwater and help protect the building envelope from water damage.

Galvanized Roof Trusses and Omega Purlin Profiles

Roof trusses and purlins are essential structural components in a modular building system.

Galvanized roof trusses form the main roof support structure. They transfer roof loads to the main steel frame and help maintain the roof shape.

Omega purlin profiles support the roof sheets and ceiling components. They also help distribute loads across the roof structure.

Together, they provide:

• Strong roof support

• Accurate load distribution

• Fast assembly

• Reduced material waste

• Clean connection details

• Long-term structural stability

This system is especially useful in prefabricated construction because it can be manufactured in advance and installed quickly on site.

Glass Wool Blanket Insulation

Glass wool blanket insulation is commonly used in modular roof and ceiling systems. It helps improve indoor comfort by reducing heat transfer and supporting sound insulation.

In roof assemblies, glass wool is usually placed above the suspended ceiling board or between roof structural elements.

Its main benefits include:

• Thermal insulation

• Sound insulation

• Lightweight installation

• Flexibility around roof framing

• Improved indoor comfort

Glass wool insulation is especially valuable for modular buildings used in hot, cold, or noisy environments.

Floor and Mezzanine System

The floor system in a modular building can include galvanized steel framing, cement board floor sheathing, insulation, screed, tile adhesive mortar, and floor tiles.

For two-storey modular buildings or mezzanine structures, the carrier frame is typically made from galvanized steel profiles. Cement board can be used as the floor covering layer because of its strength and durability.

A complete modular floor system may include:

• Galvanized steel floor frame

• Cement board floor sheathing

• Glass wool insulation

• Gypsum board or cement board ceiling sheathing

• Tile adhesive mortar

• Screed

• Floor tile

This layered construction helps create a strong, practical, and comfortable floor assembly for residential, office, and accommodation buildings.

Ceiling System

The ceiling system is usually installed below the roof or mezzanine floor structure. It can include gypsum board, cement board, omega profiles, insulation, and finishing accessories.

A typical ceiling assembly may include:

• Galvanized omega profiles

• Gypsum board ceiling

• Cement board ceiling in wet areas

• Glass wool insulation

• Painted finishing surface

• Decorative jointing elements

For wet areas such as bathrooms, toilets, showers, and kitchens, cement board is often preferred because it performs better in moisture-exposed zones.

PVC Window Frames and Door Systems

Windows and doors are important parts of the modular building envelope. PVC window frames are widely used because they are practical, durable, and suitable for different climates.

A typical modular building may include:

• PVC window frames

• Double glazing

• Steel exterior doors

• Interior wooden or steel-framed doors

• Optional aluminum or PVC doors

• Window and transom details

PVC window frames help improve thermal performance, reduce air leakage, and provide a clean modern appearance.

For buildings such as modular office buildings, homes, schools, and site accommodation units, proper window and door systems improve both comfort and usability.

Rainwater Management System

A professional modular building system should include a complete rainwater drainage solution.

The system can include:

• Rain gutter

• Downspout

• PVC eaves cladding

• Fascia cladding

• Roof edge trims

Rain gutters collect water from the roof, while downspouts direct it away from the building. This helps protect wall panels, foundation edges, and exterior finishes from unnecessary water exposure.

This detail is especially important for long-term prefabricated buildings and remote site facilities exposed to changing weather conditions.

Foundation and Floor Finish Layers

Although modular buildings are factory-produced, they still require proper site preparation and foundation work.

A common floor and foundation detail includes:

• Floor tile

• Tile adhesive mortar

• Screed

• Concrete foundation

The concrete foundation provides a stable base for the modular building. Screed helps level the floor surface, adhesive mortar secures the tiles, and floor tiles provide the final walking surface.

Depending on the project type, foundation options may vary. Some modular buildings can be installed on reinforced concrete slabs, strip foundations, steel bases, or elevated support systems.

Technical Performance of Modular Building Systems

A well-engineered modular building system is designed according to structural, thermal, and climate requirements.

Important technical performance factors include:

• Earthquake resistance

• Wind load performance

• Snow load capacity

• Thermal insulation

• Roof insulation

• Wall insulation

• Floor load capacity

• Fire performance of materials

• Moisture protection

• Connection quality

• Assembly precision

Prefabex modular building systems can be designed with galvanized steel structures, EPS insulation, cement board surfaces, glass wool roof insulation, and engineered floor systems. These components help create a reliable building solution suitable for different climates and site conditions.

Advantages of Modular Building Systems

Faster Construction

Because major components are produced in a factory, on-site work becomes much faster. This reduces project delays and allows the building to become operational sooner.

Better Quality Control

Factory production allows more controlled cutting, framing, panel assembly, insulation placement, and finishing compared with fully on-site construction.

Lower Site Disruption

Modular construction reduces heavy on-site activities, material waste, noise, and long construction periods.

Flexible Design

The system can be adapted for different layouts, sizes, room types, and building functions.

Easy Expansion

Modular buildings can often be expanded with additional rooms, floors, or connected units.

Durable Materials

Galvanized steel, cement board, EPS insulation, glass wool, PVC windows, and engineered roof systems provide durable and practical building performance.

Suitable for Many Applications

The same modular system can be used for homes, offices, schools, clinics, camps, dormitories, toilets, and commercial buildings.

Applications of Modular Building Systems

Modular building systems can be used in many sectors and project types.

Common applications include:

• modular homes

• Prefabricated villas

• worker accommodation camps

• construction site accommodation

• modular office buildings

• School buildings

• Classrooms

• Healthcare clinics

• Military housing

• Mining camps

• Dormitory buildings

• Sanitary buildings

• Remote site facilities

• Commercial modular buildings

• Two-storey prefabricated buildings

This flexibility makes modular building systems a practical solution for both private and public-sector projects.

Modular Building System for Residential Projects

For residential use, modular building systems can be used to create prefabricated homes, modular villas, bungalows, and multi-room housing units.

They are suitable for:

• Permanent homes

• Vacation houses

• Rural housing

• Staff housing

• Affordable housing

• Resort accommodation

• Two-storey homes

By using insulated wall panels, PVC windows, cement board surfaces, and galvanized steel framing, the system helps create comfortable and efficient living spaces.

For more residential solutions, explore our modular homes and light gauge steel buildings.

Modular Building System for Commercial Projects

Commercial modular buildings can be designed for offices, sales centers, showrooms, retail units, administrative facilities, and project management buildings.

The system allows businesses to build faster without compromising on professional appearance or functional performance.

Common commercial applications include:

• modular office buildings

• Site offices

• In-plant offices

• Temporary sales offices

• Administrative buildings

• Reception buildings

• Retail modular units

For construction and industrial sites, this system can also be combined with porta cabins and modular containers depending on the required layout and project duration.

Modular Building System for Workforce Accommodation

For remote projects, modular building systems are widely used to create fast and practical accommodation facilities.

These can include:

• Dormitory rooms

• Worker camps

• Dining halls

• Toilet and shower buildings

• Laundry units

• Recreation areas

• Site offices

• Security cabins

• Storage units

Because modular components can be manufactured quickly and transported efficiently, this system is ideal for construction, mining, oil and gas, infrastructure, and military projects.

For large workforce projects, you can explore our worker accommodation camps and construction site accommodation solutions.

Why Choose a Modular Building System?

Choosing a modular building system means choosing a construction method that is faster, cleaner, and more controlled than traditional construction.

It is especially valuable when the project requires:

• Fast delivery

• Reliable structural performance

• Factory-controlled quality

• Reduced on-site labor

• Flexible layouts

• Durable materials

• Thermal insulation

• Easy transportation

• Scalable building design

With the right design, materials, and engineering, modular building systems can serve as practical long-term building solutions for many sectors.

Prefabex Modular Building System

Prefabex provides modular building systems designed for different project types and site requirements. Our systems combine steel framing, insulated panels, cement board surfaces, roof systems, windows, doors, electrical installations, sanitary systems, and finishing materials into a complete prefabricated solution.

Our modular building system can be adapted for:

• Single-storey buildings

• Two-storey buildings

• Modular homes

• Office buildings

• Accommodation camps

• Educational buildings

• Healthcare buildings

• Construction site facilities

• Remote workforce projects

• Custom modular layouts

From design and production to delivery and installation support, Prefabex helps clients build faster with reliable prefabricated construction systems.

Frequently Asked Questions

What is a modular building system?

A modular building system is a prefabricated construction method where the main building components are manufactured in a factory and assembled on site. These components can include steel frames, wall panels, roof systems, insulation, windows, doors, floors, and interior finishes.

What materials are used in modular building systems?

Common materials include galvanized steel structure, cement board, EPS insulation, glass wool insulation, gypsum board, PVC window frames, galvanized trapezoidal roof sheets, omega purlin profiles, roof trusses, floor tiles, screed, and concrete foundation.

Are modular building systems durable?

Yes. When properly engineered and installed, modular buildings can provide strong structural performance, good insulation, and long service life. Galvanized steel framing and cement board cladding help improve durability.

Can modular buildings be two-storey?

Yes. Modular building systems can be designed as single-storey or two-storey structures, depending on the engineering design, load calculations, foundation, and project requirements.

Are modular buildings suitable for permanent use?

Yes. Modular buildings can be used for temporary, semi-permanent, or permanent applications depending on the structural system, materials, foundation, insulation, and finishing specifications.

What is the role of EPS insulation in modular buildings?

EPS insulation is used inside wall panels to improve thermal performance and indoor comfort while keeping the panels lightweight.

What is the role of glass wool insulation?

Glass wool insulation is commonly used in roof and ceiling systems to provide thermal and acoustic insulation.

What type of roof is used in modular buildings?

A modular building roof can include galvanized steel roof trusses, omega purlin profiles, trapezoidal steel sheets, glass wool insulation, gypsum board or cement board ceiling, gutters, and downspouts.

Do modular buildings need a concrete foundation?

Many modular buildings are installed on a concrete foundation or reinforced slab. The exact foundation type depends on the building size, soil condition, local regulations, and engineering requirements.

Build Faster with a Complete Modular Building System

Prefabex designs and manufactures modular building systems for residential, commercial, industrial, educational, and workforce accommodation projects.

Whether you need a modular home, office building, school, clinic, camp facility, or custom prefabricated structure, our team can provide a complete solution based on your project requirements.

Contact Prefabex today to discuss your modular building system project.
