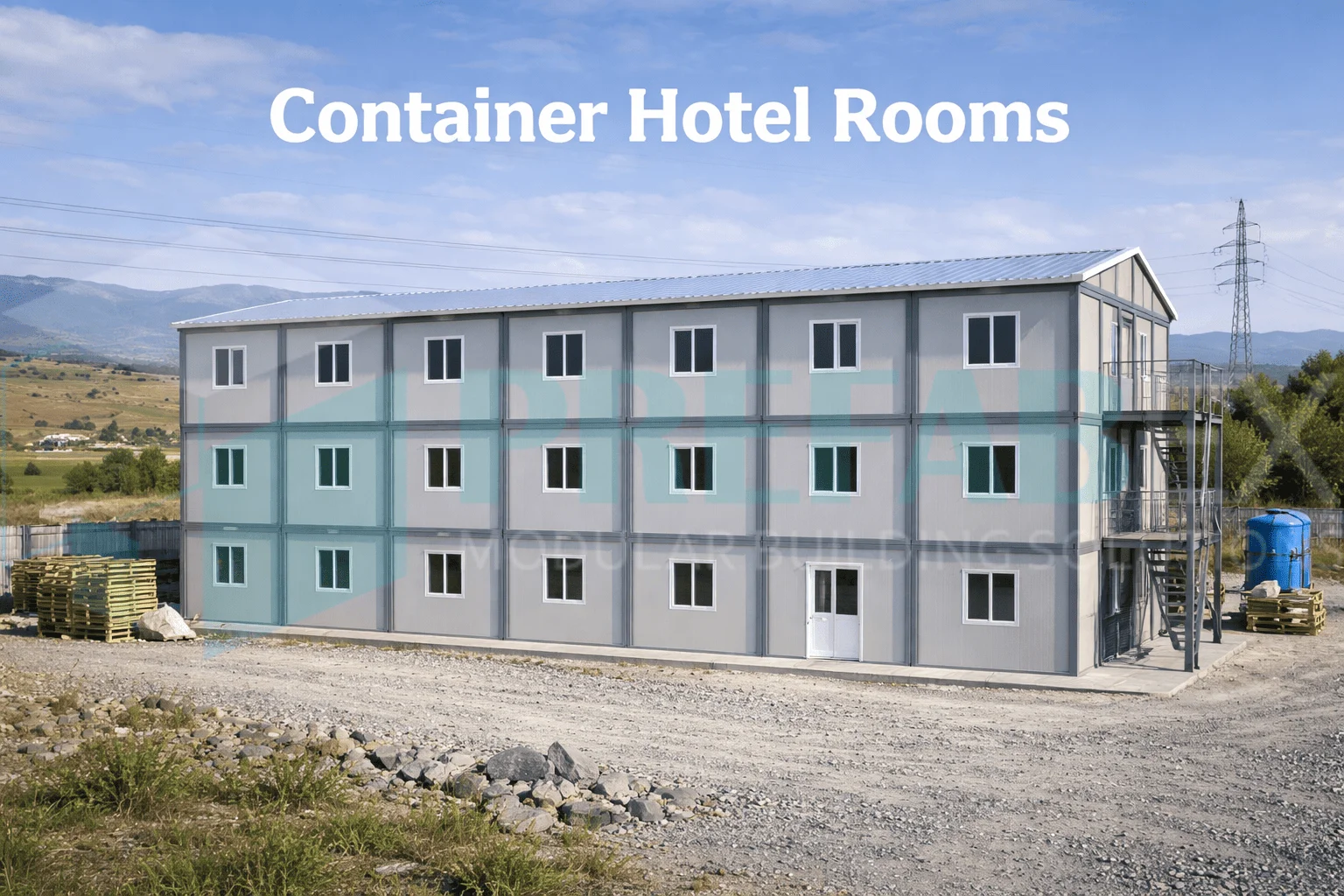

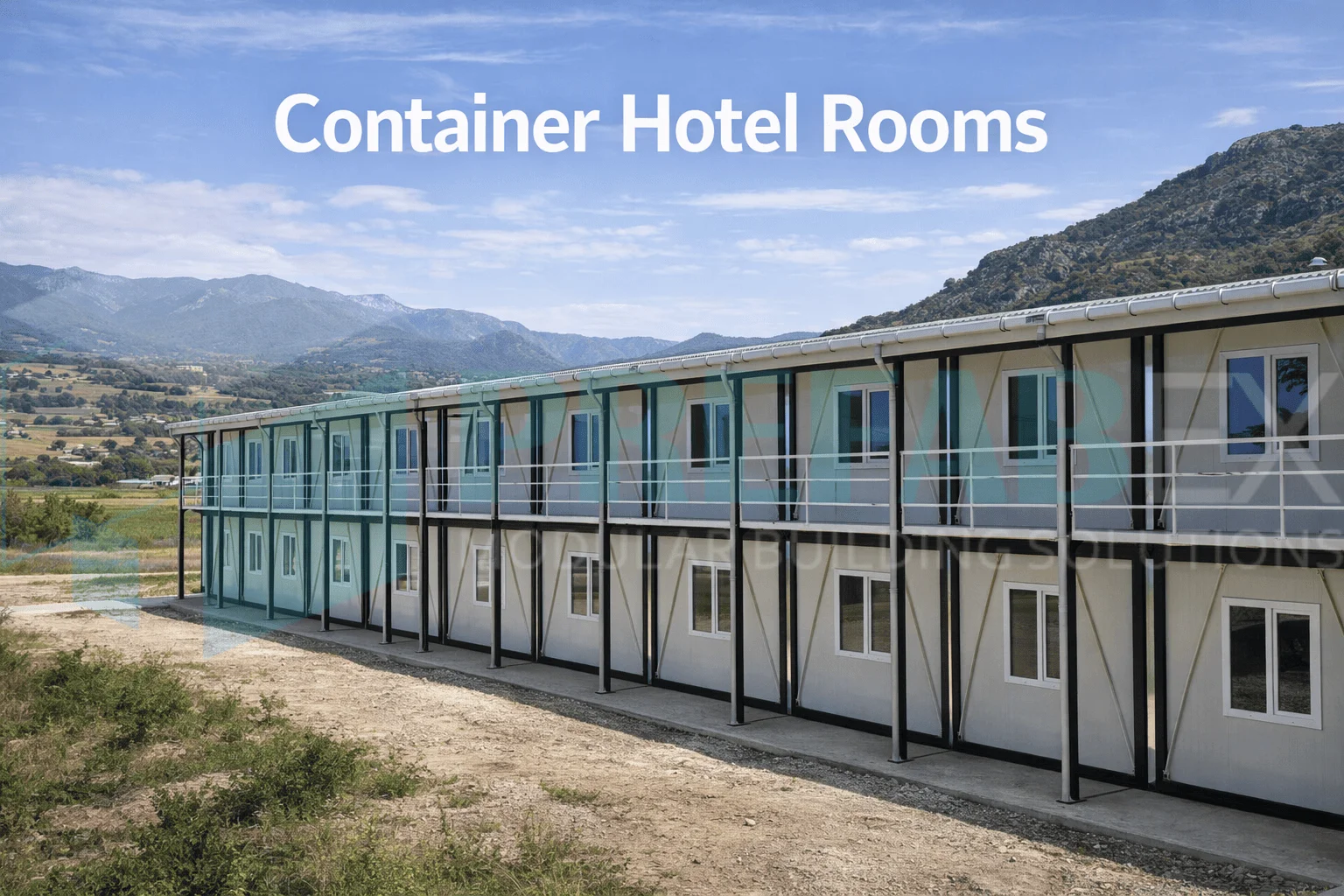

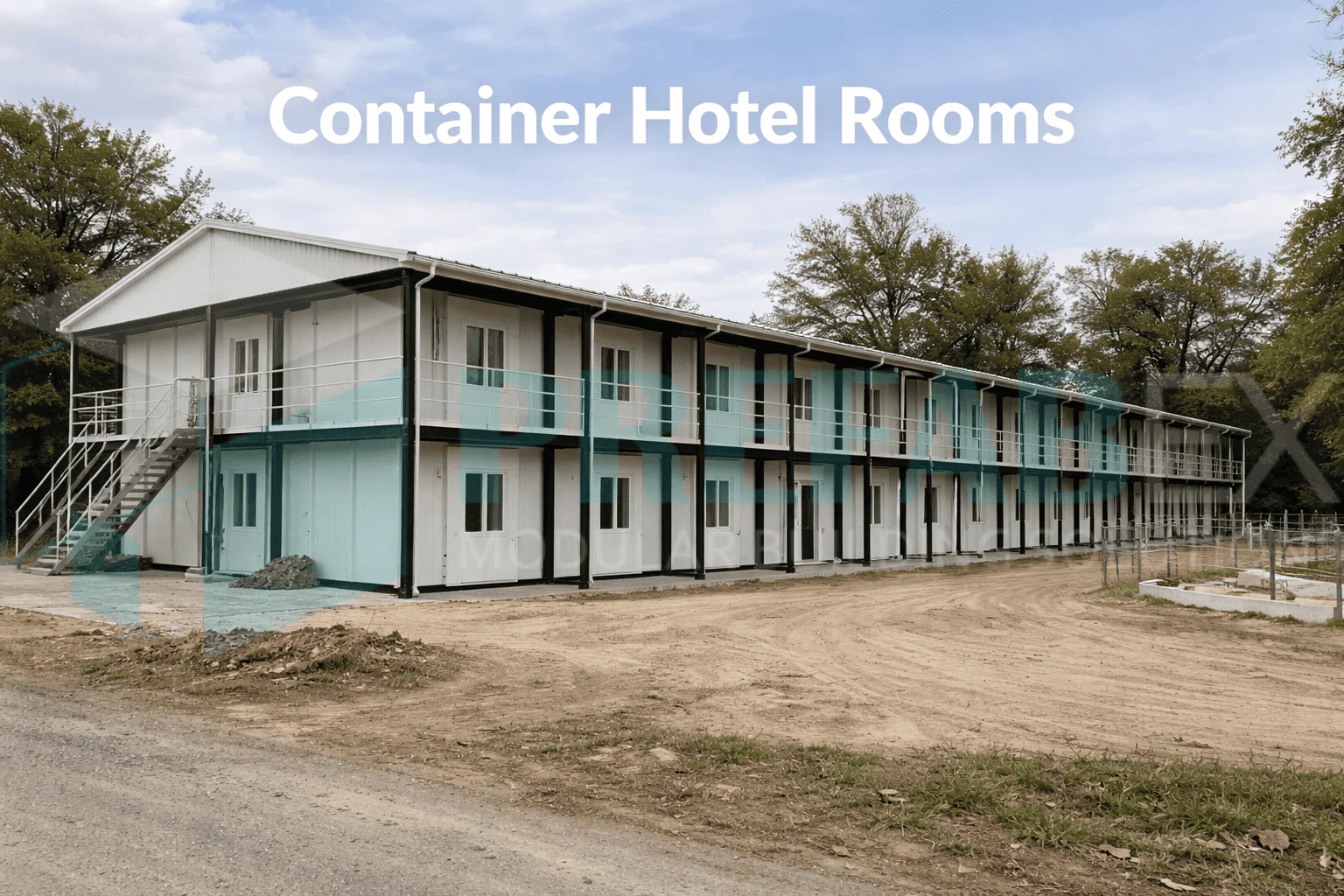

Container Hotel Rooms

What Are Container Hotel Rooms?

Container hotel rooms are enclosed steel accommodation units designed to be transported to a project site and integrated into a complete hospitality building.

They may be created by converting ISO shipping containers or by manufacturing new purpose-built container modules with dimensions, openings, wall systems, and service routes developed specifically for hotel use.

Purpose-built modules generally allow greater control over room width, ceiling height, structural framing, window positions, insulation, bathroom layout, and connection details. Converted shipping containers start with an existing transport structure and may require substantial modification before they are suitable for guest accommodation.

Container hotel rooms are a specialized category of modular and prefabricated hotel rooms , but they should not be treated as identical to every volumetric hotel module.

Shipping Containers vs. Purpose-Built Hotel Modules

Modified shipping containers and purpose-built hotel modules may have a similar external appearance, but they begin with different structural and dimensional conditions.

Shipping containers are designed primarily for transporting cargo. Their corrugated walls, corner posts, floor structure, coatings, and original internal dimensions reflect that purpose. Creating doors, large windows, connecting openings, or wider interior spaces may change the structural behavior and require engineered reinforcement.

Purpose-built container hotel modules are designed from the beginning as occupied rooms. The structural frame, insulation thickness, window and door openings, bathroom position, service connections, interior height, and transport strategy can therefore be coordinated with the hotel specification before manufacturing.

Neither option is automatically better for every project. The final decision depends on room dimensions, architectural design, required finishes, transport conditions, local regulations, structural modifications, quantity, and total cost.

Container Hotel Room Layouts

Container rooms can be configured as single, double, twin, accessible, family, connecting, studio, or compact suite accommodation. Larger rooms may use extended purpose-built modules or combine two or more structural units.

The layout should provide suitable circulation around beds and furniture, luggage storage, bathroom access, housekeeping space, maintenance access, glazing, ventilation, lighting, and emergency escape.

Standard shipping-container widths can restrict usable interior space after insulation and finishes are installed. This must be considered before finalizing bed sizes, bathroom dimensions, wardrobes, desks, seating, and accessible routes.

Purpose-built modules can offer more flexibility in width and height, although larger dimensions may increase transportation and crane requirements.

Private Bathrooms and Building Services

Private bathrooms can be integrated into container hotel rooms during factory production. The manufacturing scope may include waterproofing, sanitary fixtures, wall and floor finishes, plumbing, ventilation, lighting, mirrors, and selected accessories.

Electrical wiring, water, wastewater, heating and cooling, ventilation, fire systems, data, and communication connections must be coordinated with the complete hotel infrastructure.

Service connections should remain accessible for installation, inspection, testing, maintenance, and future repair. Penetrations through walls, floors, and ceilings require proper sealing to maintain thermal, acoustic, fire, and moisture performance.

Bathrooms and technical equipment should not be described as standard features unless they are included in the approved project specification and commercial scope.

Structural Openings and Reinforcement

Doors, windows, full-height glazing, connecting openings, balconies, and the removal of side-wall sections can affect the original container structure.

The corner posts and perimeter framing of a shipping container transfer loads during transport and stacking. Removing corrugated wall sections without suitable reinforcement can reduce stiffness and alter the load path.

Structural engineers should assess proposed openings, additional loads, stacking arrangements, wind, seismic forces, lifting conditions, and temporary installation stages.

Reinforcement may include new steel frames, beams, columns, edge members, bracing, connection plates, or secondary supports developed for the specific configuration.

Thermal Insulation and Condensation Control

Steel transfers heat quickly and can create significant thermal bridges. Container hotel rooms therefore require an insulation and moisture-control strategy suited to the project climate.

Insulation may be installed internally, externally, or through a combined wall system. Internal insulation can reduce usable room dimensions, while external insulation may require additional façade protection and detailing around roofs, corners, openings, and module connections.

Condensation risk must be evaluated at steel surfaces, thermal bridges, windows, bathrooms, roof assemblies, service penetrations, and poorly ventilated cavities.

Vapour control, airtightness, ventilation, HVAC operation, drainage, and continuity of insulation are essential to protecting finishes and maintaining suitable indoor conditions.

Guest Comfort and Acoustic Performance

Guest comfort depends on the complete room specification rather than the container structure alone.

Important factors include interior dimensions, thermal insulation, glazing, ventilation, heating and cooling, humidity control, lighting, water pressure, hot-water capacity, bathroom extraction, furniture, storage, internet infrastructure, and maintenance access.

Acoustic design should address walls, floors, ceilings, module joints, corridors, doors, windows, plumbing, ventilation equipment, and service penetrations.

A container room should not be described as soundproof unless its complete assemblies and interfaces have been designed and verified for defined acoustic requirements.

Container Hotel Architecture and Exterior Design

Container hotels can retain an industrial appearance or use additional façades, cladding, canopies, balconies, shading devices, terraces, and landscaping to create a different architectural identity.

Modules can be arranged in rows, courtyards, clusters, staggered layouts, or stacked blocks according to the site, room orientation, circulation, views, privacy, fire access, and structural design.

External design choices should also consider solar exposure, rain, corrosion, drainage, façade maintenance, roof waterproofing, window shading, guest access, and the relationship between rooms and shared hotel facilities.

The architectural concept should be coordinated with transportation and installation. Large attached façades, balconies, roofs, or projections may need to be installed after the modules reach the site.

Stacked and Multi-Level Container Hotels

Container hotel rooms can be stacked to create two-story or multi-level accommodation buildings when the structure, foundations, module connections, circulation, fire strategy, and utilities are engineered for the planned height.

Stacking arrangements must consider vertical load transfer, wind and seismic resistance, temporary stability, lifting sequence, corridor connections, stairs, façades, waterproofing, fire compartmentation, and acoustic separation.

Modified shipping containers may not retain their original stacking capacity after large structural openings are created. The final building must therefore be assessed according to its completed configuration, not only the original cargo-container rating.

There is no universal number of floors suitable for every container hotel system.

Hotel Reception and Shared Facilities

Guest-room containers are only one part of a functioning hotel. Reception areas, management offices, restaurants, kitchens, lounges, laundries, housekeeping stores, staff rooms, technical spaces, and accessible circulation must also be planned.

Small shared spaces may be created from container modules, while larger entrance halls, restaurants, event areas, and kitchens may require panelized, structural steel, concrete, or hybrid construction.

The selected system should serve the operational needs of each space rather than forcing every hotel function into the dimensions of a standard container.

Developers comparing container rooms with other hotel systems can review the main types of prefabricated hotels before selecting the final construction strategy.

Transportation and Site Installation

Container modules are designed around transportable dimensions, but the final room configuration, added insulation, façades, roof systems, balconies, and structural reinforcement can affect weight and transport requirements.

Route access, bridges, tunnels, ports, shipping arrangements, permits, cranes, lifting points, delivery sequencing, and temporary storage should be reviewed before manufacturing begins.

Foundations and connection points must be completed and surveyed before delivery. After lifting, the modules require structural connections, weather sealing, utility connections, fire stopping, façade finishing, testing, inspections, and commissioning.

Factory completion may reduce the amount of work at the hotel location, but it does not eliminate foundations, infrastructure, cranes, installation, or final approvals.

Foundations and Site Infrastructure

Container hotel rooms require engineered foundations appropriate to the building loads, soil conditions, settlement, wind, seismic forces, drainage, moisture, corrosion exposure, and selected module connections.

The project may use concrete pads, strips, slabs, ground beams, piles, steel supports, or other engineered foundation systems.

The site also requires suitable access, electricity, potable water, wastewater, hot-water production, heating and cooling, fire systems, data, security, external lighting, refuse management, parking, and pedestrian circulation.

Remote locations may require generators, water storage, wastewater treatment, backup power, fuel systems, or other independent infrastructure.

Temporary and Seasonal Container Hotels

Container-based rooms can support seasonal tourism, events, transitional hospitality, hotel renovations, or projects with a defined operating period.

They may form part of temporary modular hotels when the project uses factory-manufactured guest rooms within a temporary or seasonal operating model.

Temporary use does not mean that the rooms are automatically portable, foundation-free, or exempt from building and hospitality requirements.

Future removal and reuse must be considered during the original design, including lifting points, dimensions, connections, foundations, utilities, façade systems, finishes, and transportation.

Can Container Hotel Rooms Be Relocated?

Some container hotel rooms can be dismantled and installed at another location, but relocation is not automatically practical or economical.

Modules intended for reuse require suitable lifting points, transportable dimensions, reusable structural connections, accessible utility interfaces, removable foundation connections, and finishes able to tolerate repeated handling.

Connected façades, roofs, balconies, corridors, plumbing systems, landscaping, and site-built public areas can make dismantling more complex.

The owner should compare the cost of dismantling, transport, storage, refurbishment, new foundations, updated approvals, and reinstallation with the cost of manufacturing new units.

Expansion and Phased Development

Container hotels can be developed in phases when future expansion is incorporated into the original site plan, structure, foundations, circulation, utilities, and fire strategy.

Additional rooms may also require expansion of reception, restaurants, kitchens, laundries, housekeeping areas, water supply, wastewater treatment, electrical capacity, parking, stairs, and emergency access.

New modules cannot always be added without interrupting hotel operations. Existing façades, roofs, corridors, service networks, landscaping, and structural connections may require modification.

Fire Safety, Accessibility, and Compliance

Container hotel rooms must comply with the structural, fire, accessibility, sanitation, electrical, energy, and hospitality requirements applicable at the project location.

The complete hotel may require fire-rated walls and floors, compartmentation, protected escape routes, fire stopping, detection, alarms, emergency lighting, suppression systems, accessible entrances, accessible rooms, and suitable sanitary facilities.

Fire and acoustic continuity must be maintained at module joints, structural openings, service penetrations, corridors, façades, floors, and ceilings.

Factory manufacturing does not automatically guarantee compliance. Approved design, suitable materials, inspections, installation, testing, and commissioning are all required.

Container Hotel Room Cost Factors

Container hotel rooms are not automatically less expensive than conventional or other modular hotel rooms.

Cost depends on whether the project uses converted shipping containers or purpose-built modules, as well as room dimensions, structural reinforcement, openings, insulation, condensation control, bathrooms, finishes, furniture, HVAC, glazing, fire and acoustic systems, transportation, cranes, foundations, façades, utilities, installation, testing, and approvals.

Repeated layouts, suitable transport access, early design approval, and efficient factory production may improve cost control.

Extensive structural modifications, premium finishes, large glazed openings, remote locations, difficult roads, independent infrastructure, and small production quantities may increase the cost per room.

Environmental Considerations

Reusing a shipping container can retain an existing steel structure, and factory manufacturing may reduce some material cutting, traffic, noise, and construction activity at the hotel site.

This does not make every container hotel environmentally sustainable. Structural reinforcement, corrosion treatment, insulation, interior linings, transport distance, foundations, HVAC energy, water use, maintenance, and service life must also be evaluated.

Purpose-built modules may use new steel but can be designed more efficiently for occupied space and thermal performance. The better environmental option depends on the complete lifecycle of the actual project.

Solar panels, water-saving fixtures, efficient HVAC, recycled materials, and other environmental features may be added when suitable, but they are not standard characteristics of every container hotel room.

Container Hotel Rooms by Prefabex

Prefabex designs and manufactures purpose-built container hotel rooms and modular accommodation units for hotels, resorts, boutique hospitality, roadside lodging, remote destinations, and temporary hotel projects.

Depending on the approved scope, each unit may include a steel structural frame, insulated wall and roof systems, doors, windows, private bathroom, electrical installations, plumbing preparation, heating and cooling provisions, interior finishes, flooring, lighting, and fitted furniture.

Projects are developed according to room capacity, layout, hotel category, climate, structural requirements, fire and acoustic criteria, transport route, foundations, utility connections, finish level, installation scope, and any planned expansion or relocation.

Information Required for a Container Hotel Proposal

To prepare an accurate proposal, provide the project location, room quantity, room types, preliminary layouts, preferred module dimensions, bathroom requirements, number of floors, finish level, furniture scope, structural criteria, climate conditions, transport destination, site access, utilities, installation scope, and target schedule.

Information about reception, restaurants, kitchens, laundries, stairs, corridors, accessible rooms, façades, balconies, landscaping, future expansion, and possible relocation should also be identified before manufacturing begins.

Frequently Asked Questions

What is a container hotel room?

It is a guest-accommodation unit created from a modified shipping container or a purpose-built steel container module designed for integration into a hotel or hospitality development.

Can a shipping container be used directly as a hotel room?

No. It normally requires structural assessment, suitable openings, insulation, condensation control, ventilation, fire and acoustic assemblies, services, finishes, and approval for occupied use.

Can container hotel rooms include private bathrooms?

Yes. Bathrooms can be installed with waterproofing, sanitary fixtures, plumbing, ventilation, finishes, and accessories when included in the project scope.

Are container hotel rooms comfortable?

They can provide suitable hotel comfort when internal dimensions, insulation, ventilation, HVAC, acoustics, lighting, furniture, bathrooms, glazing, and services are designed to the required hospitality standard.

Can container hotel rooms be stacked?

Yes, when the completed structure, reinforcement, foundations, connections, fire strategy, circulation, and installation sequence are engineered for the required number of floors.

Can container hotel rooms be relocated?

Some can be relocated when their dimensions, lifting points, connections, foundations, utilities, façades, and finishes are designed for dismantling and reuse.

Are container hotels cheaper?

Not automatically. Cost depends on structural conversion, room size, insulation, bathrooms, finishes, transport, foundations, services, façades, cranes, installation, and the complete project scope.

Are container hotels environmentally sustainable?

Not automatically. Environmental performance depends on the source of the container, structural modifications, added materials, transport, insulation, operating energy, maintenance, service life, and future reuse.
